High Temperature Resistant 135℃ Analog PH Sensor For Strong Acid & Alkali

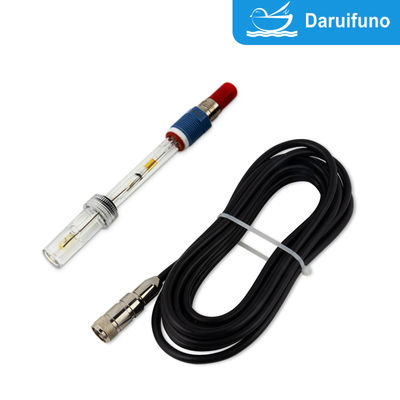

Gambar besar : High Temperature Resistant 135℃ Analog PH Sensor For Strong Acid & Alkali

Detail produk:

Tempat asal:	CINA
Nama merek:	Daruifuno
Sertifikasi:	CE, ISO
Nomor model:	ASP120E

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	USD25-250
Kemasan rincian:	Karton
Waktu pengiriman:	3-10 hari kerja
Syarat-syarat pembayaran:	T/T, Western Union, Moneygram
Menyediakan kemampuan:	100.000 set per bulan

Kontak

High Temperature Resistant 135℃ Analog PH Sensor For Strong Acid & Alkali

Deskripsi

Nama Produk:	Sensor PH	Rentang pengukuran:	0~14pH
Nol (E0) ph:	± 0,25ph	AIR KOTOR%:	＞ 95%
Tekanan kerja:	0-6bar	Suhu kerja:	0~100℃
Satuan suhu:	PT100, PT1000, NTC10K disesuaikan	Dimensi pemasangan:	PG13.5
Timah ekor:	Integral atau split	Kabel:	Standar 5 meter
Aplikasi:	Asam Kuat & Alkali
Menyoroti:	high temperature resistant pH sensor , analog pH sensor for strong acid , 135℃ resistant ORP sensor

High Temperature Resistant 135℃ Analog PH Sensor For Strong Acid & Alkali

The Daruifuno pH sensor ASP101E delivers precise ORP measurement across a full range of 0 to ±2000mV. Its advanced design features:

Operational and Environmental Capabilities

Engineered for versatile performance in diverse conditions:

Medium-to-low temperature range (0-80°C): Continuous operation at pressures up to 4 bar
High-temperature range (80-100°C): Continuous measurements for up to 30 minutes at 2 bar pressure

Detailed Performance Metrics

Optimal sample flow rate: 0.001 m/s to 0.5 m/s
Zero-point (E0) ORP: ±20mV for excellent calibration stability
Slope: Over 95% sensitivity
Temperature compensation options: PT100, PT1000, or customized NTC10K sensor

Installation and Design Flexibility

Standard dimensions: 12mm diameter × 120mm length (custom sizes available)

Installation options: Twist-proof cap or PG13.5 thread
Cable configuration: Integrated or detachable

Specifications

Model	ASP120E	ASP121E	ASP122E	ASP123E	ASP124E
Measuring Object	PH
Measuring Range	0~14pH
Indicator Electrode	low impedance cylindrical glass membrane
Reference System	Ag/AgCl reference electrode, double salt bridge, KCl gel
Electrode Material	Glass+Dot-shaped ceramic hole			Glass+Porous tetrafluoro ring	Glass+ceramic sand core
Working Pressure	Medium and low temp environment: max. 0~6bar High temp environment: 0~3bar
Working Temp.	Medium and low temp. environment: 0~80℃, continuous work High temp. environment: 80~100℃, continuous work for less than 60 minutes Customzied as below : Medium and low temp. Env.: 0~100℃, continuous work High temp. Env.: 100~135℃, continuous work < 60 mins High temp. Env. work more than 40 times (clean water test env.)
Sample Flow Rate	0.5 m/s ≥ flow velocity ≥ 0.001 m/s
Zero (E0)	±0.25pH
SLOP%	＞95%
Temperature Unit	PT100, PT1000, NTC10K customized
Dimension	Standard: diameter 12mm/Length 120mm (customized)
Installation Thread	PG13.5
Tail Lead	Integral or split
Application	Strong acid and alkali	Normal temp. pure water >5μS/cm	Harsh industrial process*	Normal temp. desulfurization or viscous slurry	Hydrofluoric acid with concentration ≤4000ppm

Model	ASP125E	ASP126E	ASP127E	ASR120E	ASP128E
Measuring Object	PH			ORP	PH
Measuring Range	0~14pH			±2000mV	0~14pH
Indicator Electrode	low impedance cylindrical glass membrane			Platinum	glass membrane
Reference System	Ag/AgCl reference electrode, double salt bridge, KCl gel
Electrode Material	Glass+ceramic sand core
Working Pressure	Medium and low temp environment: max. 0~6bar High temp environment: 0~3bar				max. 0~6bar
Working Temp.	Medium and low temp. environment: 0~80℃, continuous work High temp. environment: 80~100℃, continuous work for less than 60 minutes Customzied as below : Medium and low temp. Env.: 0~100℃, continuous work High temp. Env.: 100~135℃, continuous work < 60 mins High temp. Env. work more than 40 times (clean water test env.)				-15~80℃, continuous work
Sample Flow Rate	0.5 m/s ≥ flow velocity ≥ 0.001 m/s
Zero (E0)	±0.25pH
SLOP%	＞95%
Temperature Unit	PT100, PT1000, NTC10K customized
Dimension	Standard: diameter 12mm/Length 120mm (customized)
Installation Thread	PG13.5
Tail Lead	Integral or split
Application	Strong acid and alkali	Harsh conditions &high pollution	Fermentation process	High temp. Industrial process	Low temp.

Features & Advantages

Large capacity reference for extended service life
Optional cleaning connector for underwater maintenance
Available with PTFE protective cover and self-cleaning interface
Self-cleaning function enhances stability, accuracy, and reliability while reducing maintenance costs

The ASR101E glass pH sensor offers ultimate flexibility with custom mounting accessories for any industrial environment:

Sidewall Mounting: Ideal for large tanks and vessels
Top Flange Mounting: Perfect for sealed reactors
Pipe/Flow Cell Mounting: For in-line measurements
Submersible Mounting: For open tanks and channels
Manual Retractable Holder: Enables maintenance without process shutdown

Enhanced Durability with PTFE Sheath

The optional PTFE (Teflon) sheath provides exceptional corrosion resistance in harsh chemical environments. Featuring 3/4" NPT threads for easy attachment to mounting accessories, it ensures seamless integration across various applications.

High Temperature Resistant 135℃ Analog PH Sensor For Strong Acid & Alkali 0

Applications

The ASR101E ORP sensor serves critical monitoring needs across multiple industries:

Water treatment plants: Ensures ORP compliance throughout treatment processes
Industrial production: Monitors ORP in chemical, pharmaceutical, and food processing
Environmental monitoring: Tracks ORP in natural water bodies
Aquaculture: Maintains optimal pond conditions
Aquariums & pools: Protects aquatic life and swimmer safety
Research labs: Supports precise pH measurement in experiments

High Temperature Resistant 135℃ Analog PH Sensor For Strong Acid & Alkali 1
